Crown Moulding Miter and Bevel Angles Calculator for Compound Miter Saw Settings

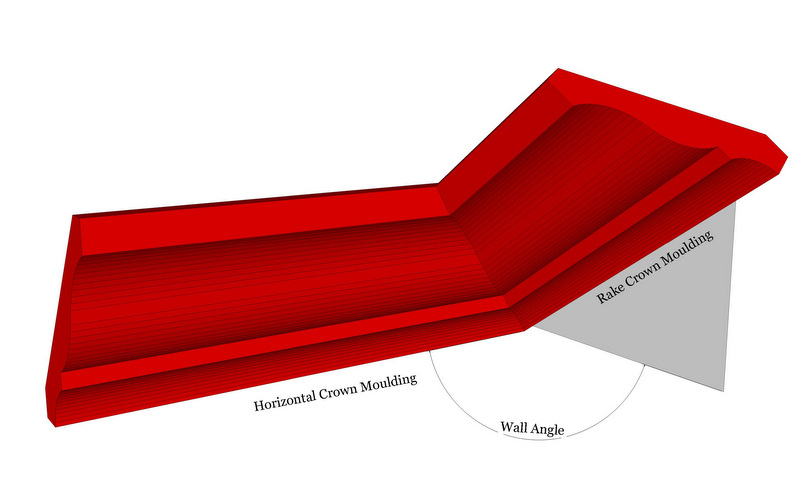

for Horizontal Crown To Rake Crown with No Transition Piece

Use this calculator only with other calculators that say No Transition Piece (red crown). This calculator will change the crown spring of crown moulding on the the vertical plane, roll the crown moulding, and is not interchangeable with the other (brown crown) calculators.

Spring Angle
Degrees input: use any crown spring angle in degrees like 38.00°

Wall Corner Angle
This is the wall corner angle of the building. Most crown wall corners are at 90°. This is measured in the horizontal plane.

Roof Slope Angle
This is the roof slope angle of the building. See below for typical roof slope angles. This is measured in the vertical plane. An 8:12 roof pitch is = 33.69007° You can enter 33.69007° or the total vertical plane angle as 123.69007° (90° + 33.69007° = 123.69007°) Use your angle finder if you don't know the roof slope angle. The Wall Corner Angle Must be at 90° to calculate the correct Roof Slope Angle.

Calculated Results for the Crown Molding Angles.

  1. Crown Miter Angle for material laying flat in compound miter saw
  2. Crown Saw Blade Bevel Angle for material laying flat in compound miter saw

Calculate Spring Angle.
Use the Spring Angle Calculator to enter the rise and run of the crown molding to calculate the spring angle for the crown molding your using.

Roof  Pitch  in Inches per Rise of  Roof in 1 Foot of Run -- Roof Slope Angles
